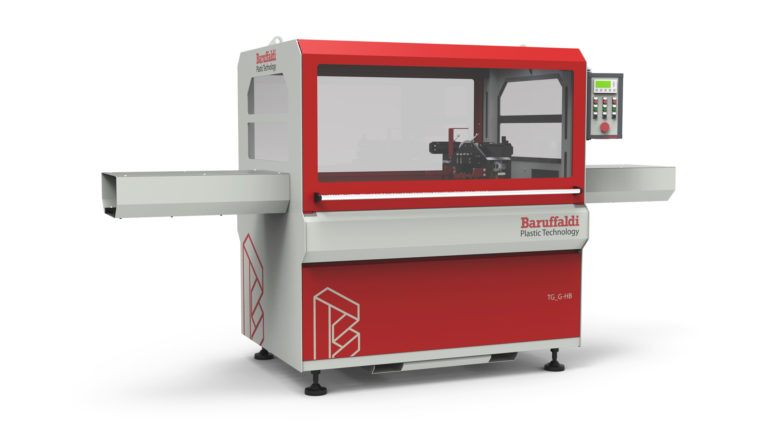

Cutting saws for plastic and composite profiles

To meet the various production needs of the market, we have designed and manufactured various types of cutting saws, which stand out for their sturdiness and attention to construction details.

They are available in different sizes and with carriage operated pneumatically or with servomotor. They guarantee continuous process reliability, versatility of use and adaptability to the customer’s specific production needs.

The frame is made of electro-welded pressed steel and si panelled in the lower part, whereas the upper part is closed off with accident-prevention safety guards.

All our cutting saws are equipped with adjustable feet, to adapt the machine to the height of the extrusion axis, pneumatic clamps, external aspirator and encoder.

The soundproof frame guarantees low noise levels and reduction of acoustic emissions for a safe and healthy working environment.

All Baruffaldi cutting saws are equipped with a swarf suction system to guarantee a clean working environment and no dust on the final product.

TG. SR 300

Rotary pneumatic under-base cutting unit, for high speeds up to 50 m/min
Cutting disc diameter 300 mm
Maximum cut size 100 x 20 mm
Variable speed, 2 pole, 1.1 kW motor

TG. VS 350

Up cut saw with vertical blade movement and pneumatically controlled carriage
Cutting disk diameter: 350 mm
Maximum cut size: 130 x 60 mm
Variable speed, 2 pole, 2.6 kW motor

TG. VS 600

Up cut saw with vertical blade movement and pneumatically controlled carriage
Cutting disk diameter 600 mm
Maximum cut size: 500 x 50 – 180 x 180 mm
Variable speed 2 pole 2.6 kW motor

TG. VTS 300

Up cut saw with vertical and transversal blade movement and pneumatically controlled carriage
Cutting disk diameter: 350 mm
Maximum cut size: 130 x 60 mm
Variable speed, 2 pole, 1.1 kW motor

TG. VTS 530

Up cut saw, with vertical and transversal blade movement and servomotor-controlled carriage
Up cut saw, with vertical and transversal blade movement and servomotor-controlled carriage
Maximum cut size: 800 x 150 mm
Variable speed 2 pole 2.2 kW motor

TG. VS 750

Up cut saw, with vertical and transversal blade movement and servomotor-controlled carriage
Cutting disk diameter 750 mm
Maximum cut size: 650 x 70, 200 x 250 mm
Variable speed 2 pole 2.2 kW motor

Advantages

No noise during the cut
High cut precision in the units with carriage with servomotors
Great versatility for different applications
Main frame made of pressed electro-welded steel with lower soundproof panels
Carriage synchronisation with the extrusion speed by means of servomotor with a ball & lead screw
Automatic adjustment of the carriage transversal stroke by means of a servomotor, that can be switched on from the operator panel
Leading brand components
Customised software according to customer needs
Process reliability and energy saving
Reduction of production costs thanks to its high productivity and low maintenance costs
Easy use and quick blade changeover

Technical features

Solid, robust and versatile units
Suitable for cutting profiles extruded in various plastic materials
Good quality of the cut thanks to the perfect profile adherence to the blade, as well as to the perfect guide system for the profile
Safety in usage and effective soundproof protection
